cos(2β) measurement and
(ρ ;
η) plane
There are two ways to access the value of cos(2β), which allows to remove the
ambiguity in between β and π/2 - β that comes from the measurement
of sin(2β)
-
From the time dependent analysis of the decay B → J/ψ K*0S,
it is possible to extract the values of both sin(2β) and cos(2β), using the
angular analysis of the Vector-Vector final state.
-
Using the same Dalitz approach of the
DK measurement of γ,
it is possible to measure β from B0 → D0π0
decays (up to a β → β+π ambiguity) from the interference of the B0 and
B0 decay amplitudes, as
suggested in hep-ph/0503174.
Both BaBar and Belle performed these measurements, obtaining the results shown below.
from the combination of the result, we found that cos(2β) < 0 is exluded with
a probability of 99.95%.
(EPS),
[JPG]
|

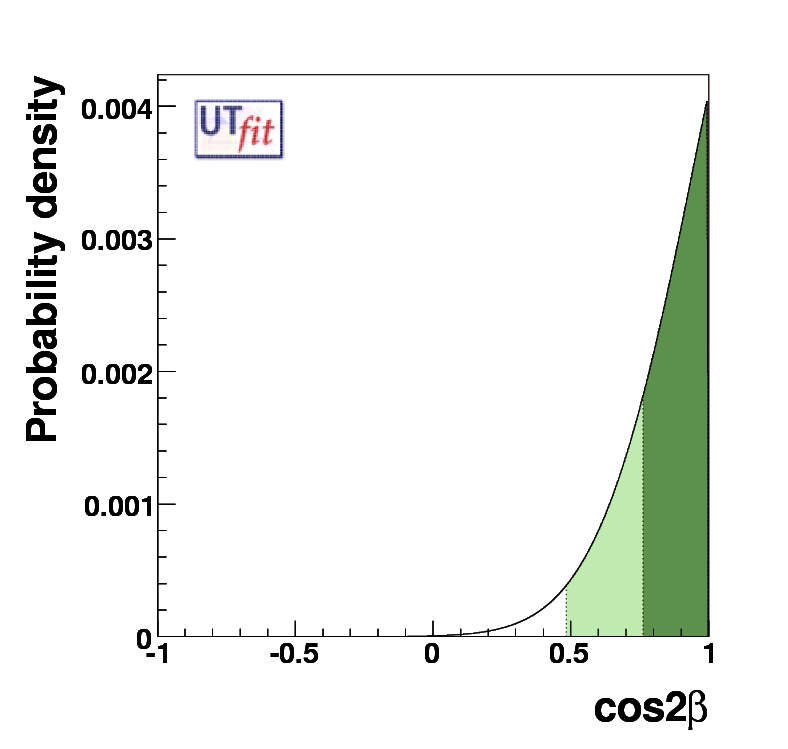

cos2β > 0.48 @ 95% prob.
from the average of all the measurements
cos2β > 0 @ 99.95% prob.
|
|
(EPS)
[JPG]
|

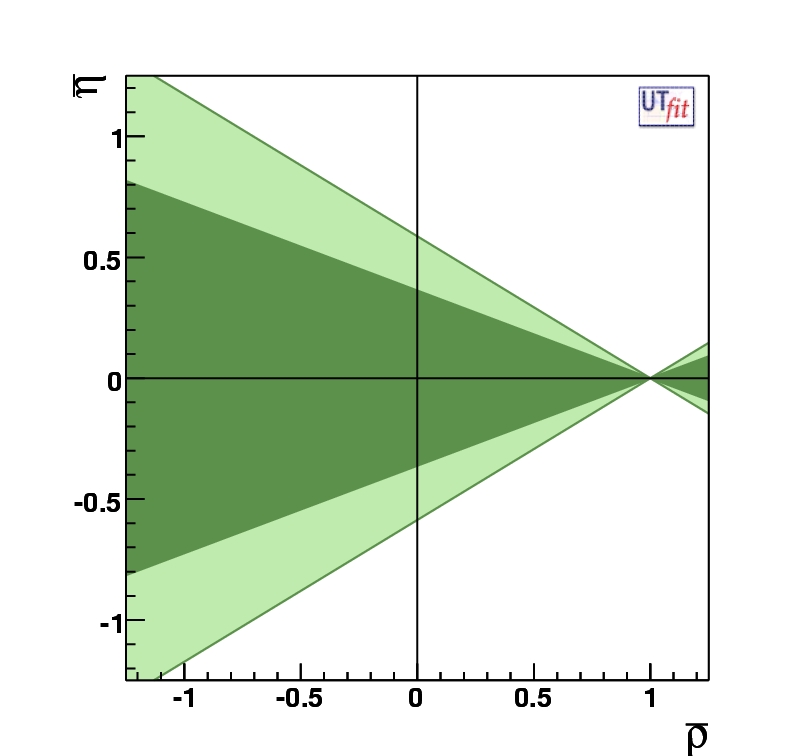

bound from cos(2β).
The allowed end excluded regions for
sin(2β) are shown as a reference
|
|
