Tree Level Fit results: Summer 2015

>
>
META TOPICPARENT name="ResultsWinter2016"

Tree Level Fit results: Winter 2016



In principle, the presence of New Physics might affect the result of the UT analysis, changing the functional dependencies of the experimental quantities upon ρ and η. On the contrary, two constraints now available, are almost unchanged by the presence of NP: |Vub/Vcb| from semileptonic B decays and the UT angle γ from B → D(*)K decays. As usual from this fit one can gets predictions for each observable related to the Unitarity Triangle. This set of values is the minimal requirement that each model describing New Physics has to satisfy in order to be taken as a realistic description of physics beyond the Standard Model.
Line: 8 to 8


Changed:
<
<

Parameter Full fit
\bar{\rho} -0.12 \pm 0.041 \text{ and } 0.121 \pm 0.041
\bar{\eta} -0.355 \pm 0.025 \text{ and } 0.356 \pm 0.026
\rho 0.123 \pm 0.042
\eta 0.365 \pm 0.025
A 0.814 \pm 0.028
\lambda 0.2251 \pm 0.0006
\alpha, [^{\circ}] 86.3 \pm 6.4
\beta, [^{\circ}] 22.0 \pm 1.3
\sin(2\beta) 0.694 \pm 0.033
\gamma, [^{\circ}] 71.3 \pm 6.5

The fit results for all the nine CKM elements are \left(\begin{array}{ccc} (0.97433 \pm 0.00014) & (0.22512 \pm 0.00063) & (0.0036 \pm 0.00022)e^{i(-71.6 \pm 6.3)^\circ}\\ ( -0.22493 \pm 0.00063)e^{i(0.0346 \pm 0.0031)^\circ} & (0.97351 \pm 0.00016)e^{i(-0.00185 \pm 0.00016)^\circ} & (0.0413 \pm 0.0014) \\ (0.00881 \pm 0.00049 \text{ and } 0.01092 \pm 0.00049)e^{i(-21.9 \pm 1.3)^\circ} & ( -0.0402 \pm 0.0014)e^{i(1.08 \pm 0.075)^\circ} & (0.999143 \pm 0.00006)\end{array}\right)




Full fit result for \,\bar{\rho}
-0.12 \pm 0.041 \text{ and } 0.121 \pm 0.041
95% prob:[-0.20, -0.03] U [0.039, 0.204]
99% prob:[-0.23, 0.236]
EPS - PDF - PNG - JPG - GIF



Full fit result for \,\bar{\eta}
-0.355 \pm 0.025 \text{ and } 0.356 \pm 0.026
95% prob:[-0.40, -0.30] U [0.304, 0.404]
99% prob:[-0.42, -0.27] U [0.277, 0.429]
EPS - PDF - PNG - JPG - GIF




Full fit result for \,\rho
0.123 \pm 0.042
95% prob:[0.04, 0.209]
99% prob:[0, 0.242]
EPS - PDF - PNG - JPG - GIF



Full fit result for \,\eta
0.365 \pm 0.025
95% prob:[0.312, 0.414]
99% prob:[0.283, 0.438]
EPS - PDF - PNG - JPG - GIF




Full fit result for \,A
0.814 \pm 0.028
95% prob:[0.758, 0.871]
99% prob:[0.73, 0.901]
EPS - PDF - PNG - JPG - GIF




Full fit result for \,\lambda
0.2251 \pm 0.0006
95% prob:[0.2239, 0.2264]
99% prob:[0.2232, 0.227]
EPS - PDF - PNG - JPG - GIF




Full fit result for \,\alpha, [^{\circ}]
86.3 \pm 6.4
95% prob:[74, 100.]
99% prob:[68.5, 68.6] U [68.8, 107.]
EPS - PDF - PNG - JPG - GIF




Full fit result for \,\beta, [^{\circ}]
22.0 \pm 1.3
95% prob:[19.3, 24.6]
99% prob:[18.0, 25.9]
EPS - PDF - PNG - JPG - GIF




Full fit result for \,\sin(2\beta)
0.694 \pm 0.033
95% prob:[0.628, 0.759]
99% prob:[0.591, 0.788]
EPS - PDF - PNG - JPG - GIF




Full Fit result for \,\gamma, [^{\circ}]
71.3 \pm 6.5
95% prob:[57.9, 84.1]
99% prob:[50.7, 90.7]
EPS - PDF - PNG - JPG - GIF

>
>

Parameter Input value Prediction
\bar{\rho} - -0.127 \pm 0.045 \text{ and } 0.127 \pm 0.045
\bar{\eta} - -0.379 \pm 0.044 \text{ and } 0.378 \pm 0.044
\rho - 0.130 \pm 0.046
\eta - 0.388 \pm 0.044
A - 0.807 \pm 0.021
\lambda - 0.22514 \pm 0.00059
\alpha, [^{\circ}] - 88.1 \pm 3.4
\beta, [^{\circ}] - 24.2 \pm 1.6
\sin(2\beta) - 0.750 \pm 0.038
\gamma, [^{\circ}] -108.5 \pm 6.5 \text{ and } 71.4 \pm 6.5 66.9 \pm 3.0

CKM matrix thus looks like V_{CKM}=\left(\begin{array}{ccc} (0.97433 \pm 0.00014) & (0.22512 \pm 0.00062) & (0.00363 \pm 0.00012)e^{i(-71.6 \pm 6.3)^\circ}\\ ( -0.22492 \pm 0.00062)e^{i(0.0362 \pm 0.0040)^\circ} & (0.97351 \pm 0.00014)e^{i(-0.00193 \pm 0.00021)^\circ} & (0.04236 \pm 0.00061) \\ (0.00876 \pm 0.00046 \text{ and } 0.01095 \pm 0.00046)e^{i(-23.5 \pm 2.4)^\circ} & ( -0.0398 \pm 0.0011)e^{i(1.14 \pm 0.10)^\circ} & (0.999155 \pm 0.000043)\end{array}\right)

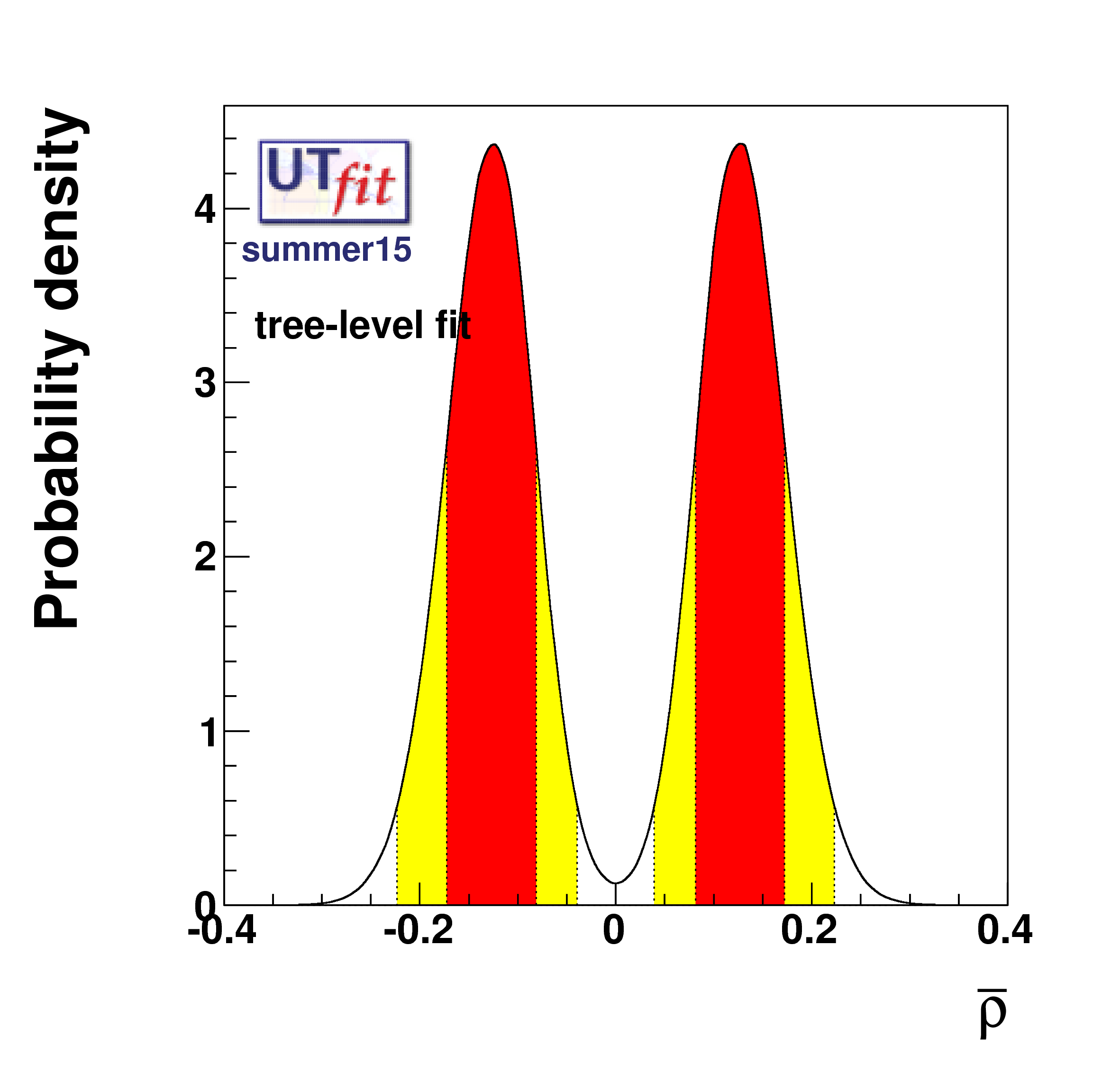

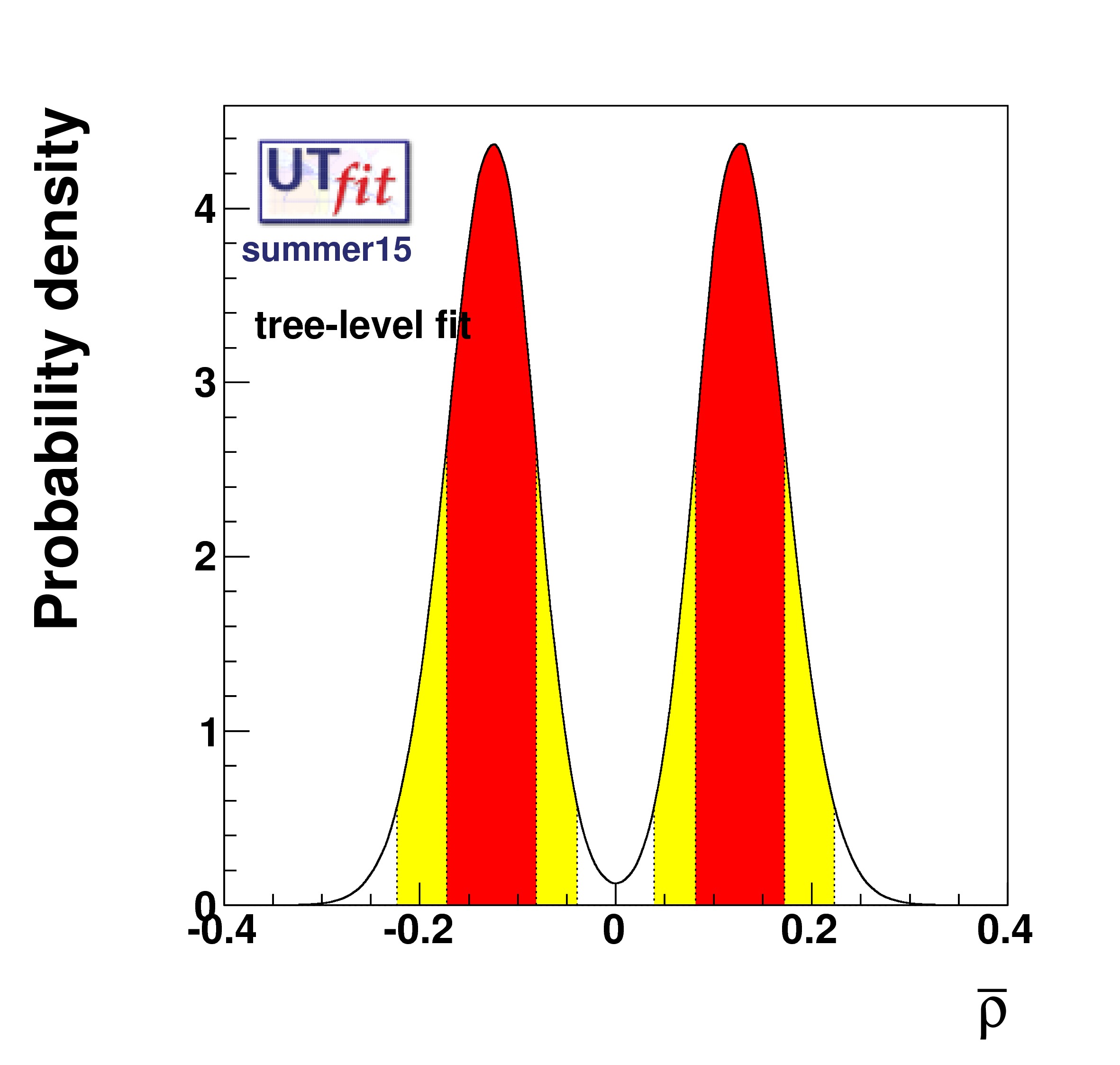

Full fit result for \,\bar{\rho}
-0.127 \pm 0.045 \text{ and } 0.127 \pm 0.045
95% prob:[-0.223, -0.039] U [0.039, 0.223]
99% prob:[-0.266, 0.265]
EPS - PDF - PNG - JPG - GIF

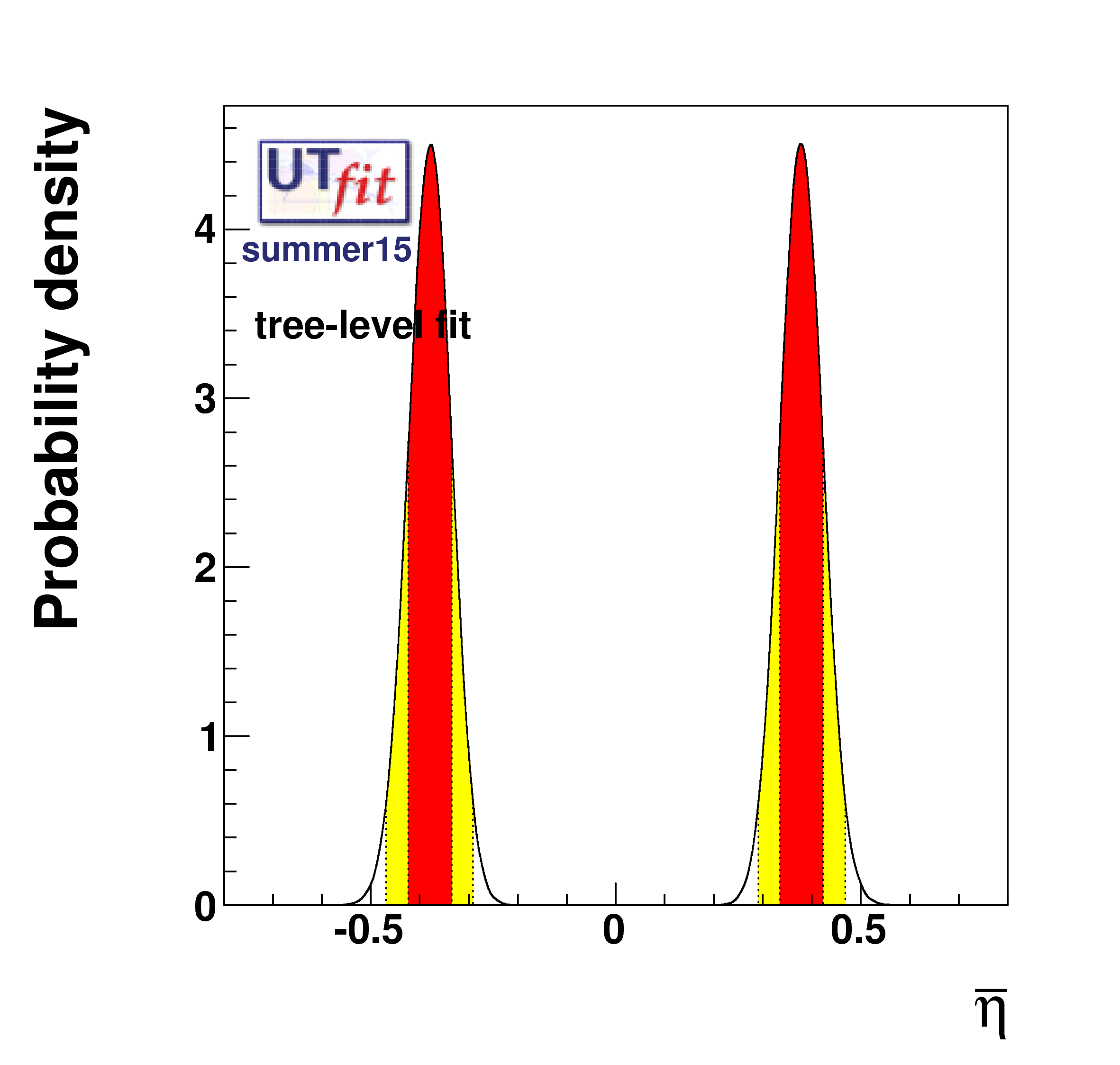

Full fit result for \,\bar{\eta}
-0.379 \pm 0.044 \text{ and } 0.378 \pm 0.044
95% prob:[-0.468, -0.291] U [0.291, 0.468]
99% prob:[-0.515, -0.250] U [0.249, 0.514]
EPS - PDF - PNG - JPG - GIF



Full fit result for \,\bar{\rho} - \bar{\eta}



EPS - PDF - PNG - JPG - GIF

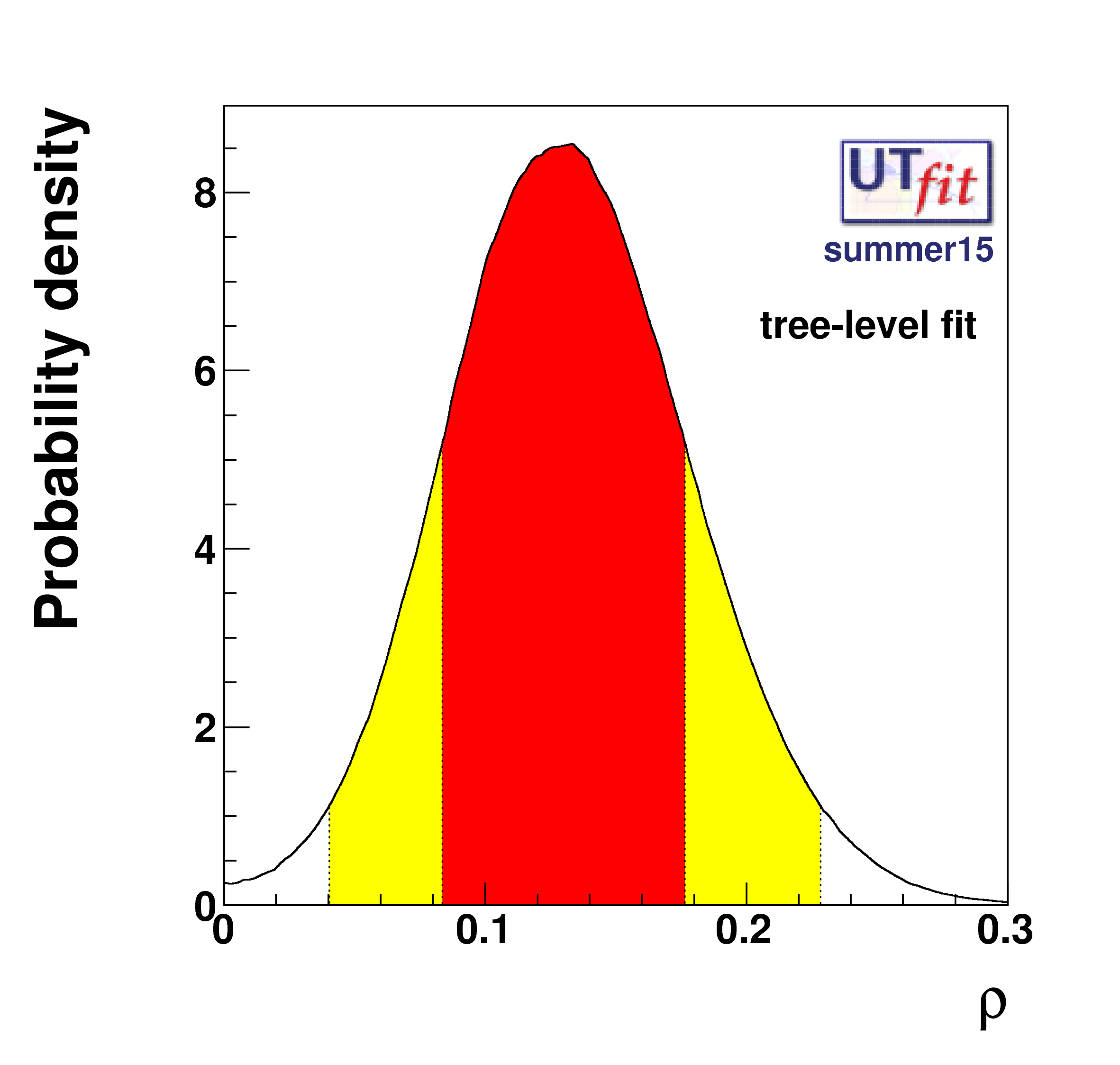

Full fit result for \,\rho
0.130 \pm 0.046
95% prob:[0.040, 0.228]
99% prob:[0.000000000000, 0.269]
EPS - PDF - PNG - JPG - GIF

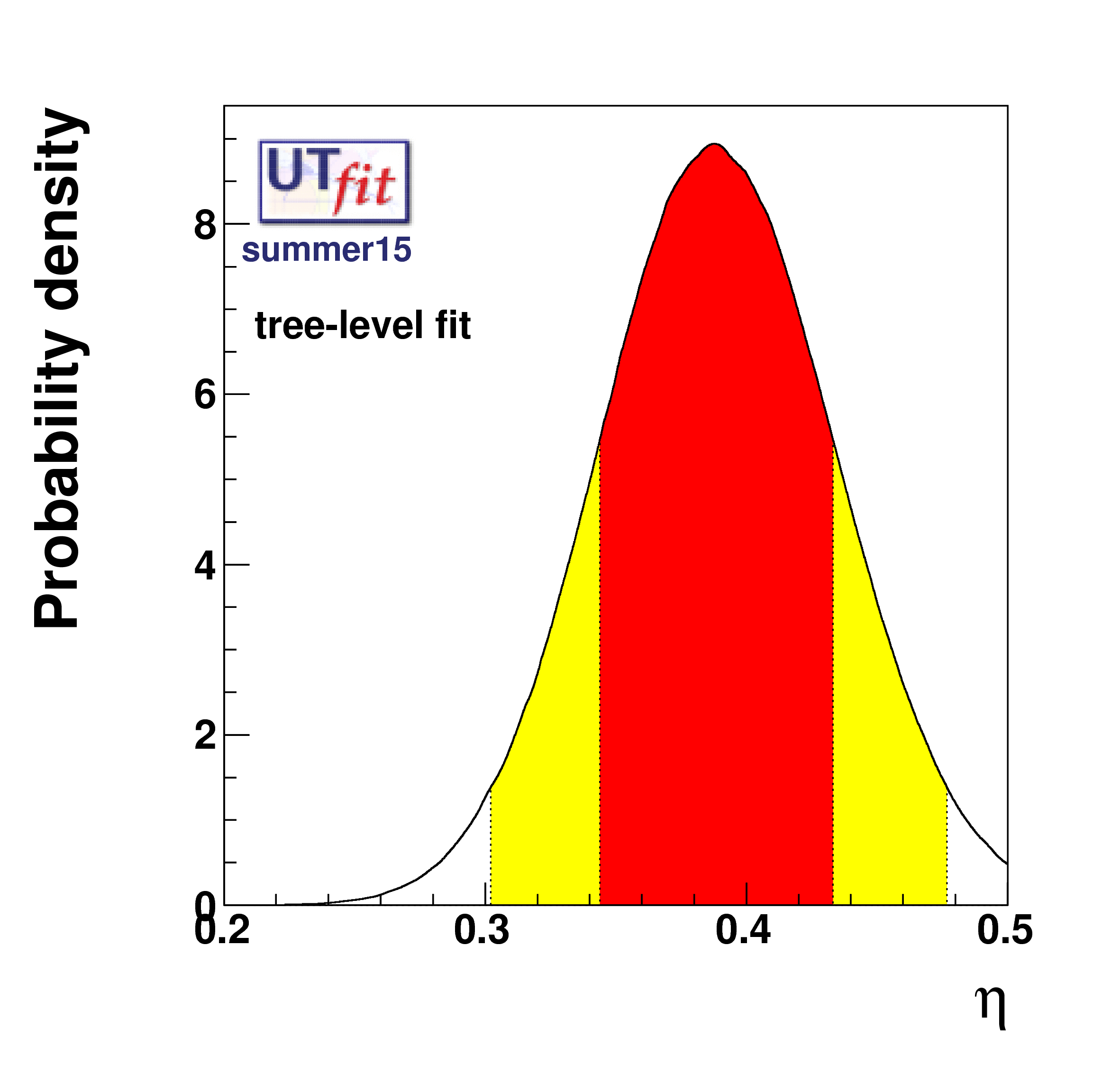

Full fit result for \,\eta
0.388 \pm 0.044
95% prob:[0.302, 0.476]
99% prob:[0.267, 0.500]
EPS - PDF - PNG - JPG - GIF

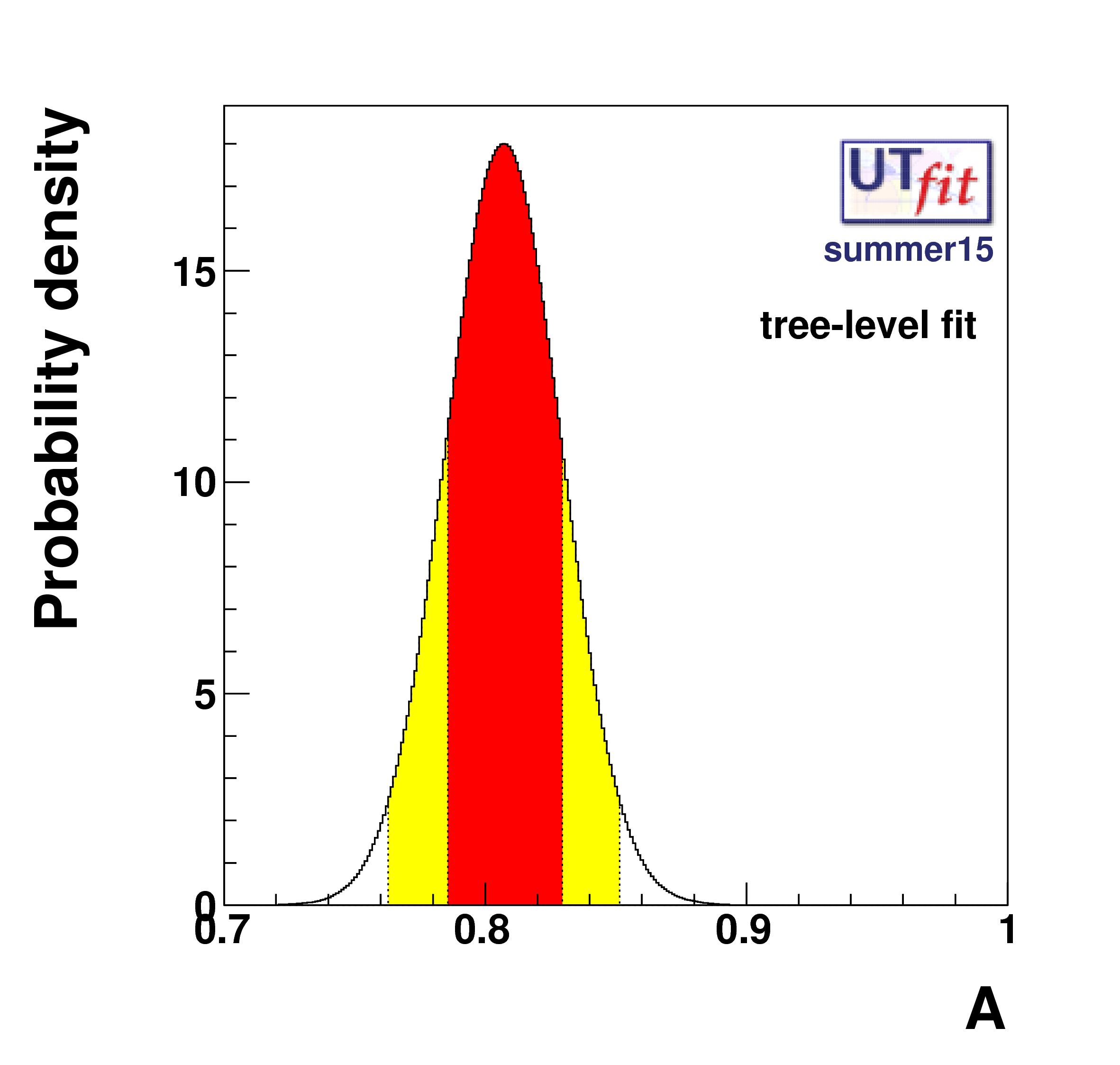

Full fit result for \,A
0.807 \pm 0.021
95% prob:[0.762, 0.851]
99% prob:[0.740, 0.873]
EPS - PDF - PNG - JPG - GIF

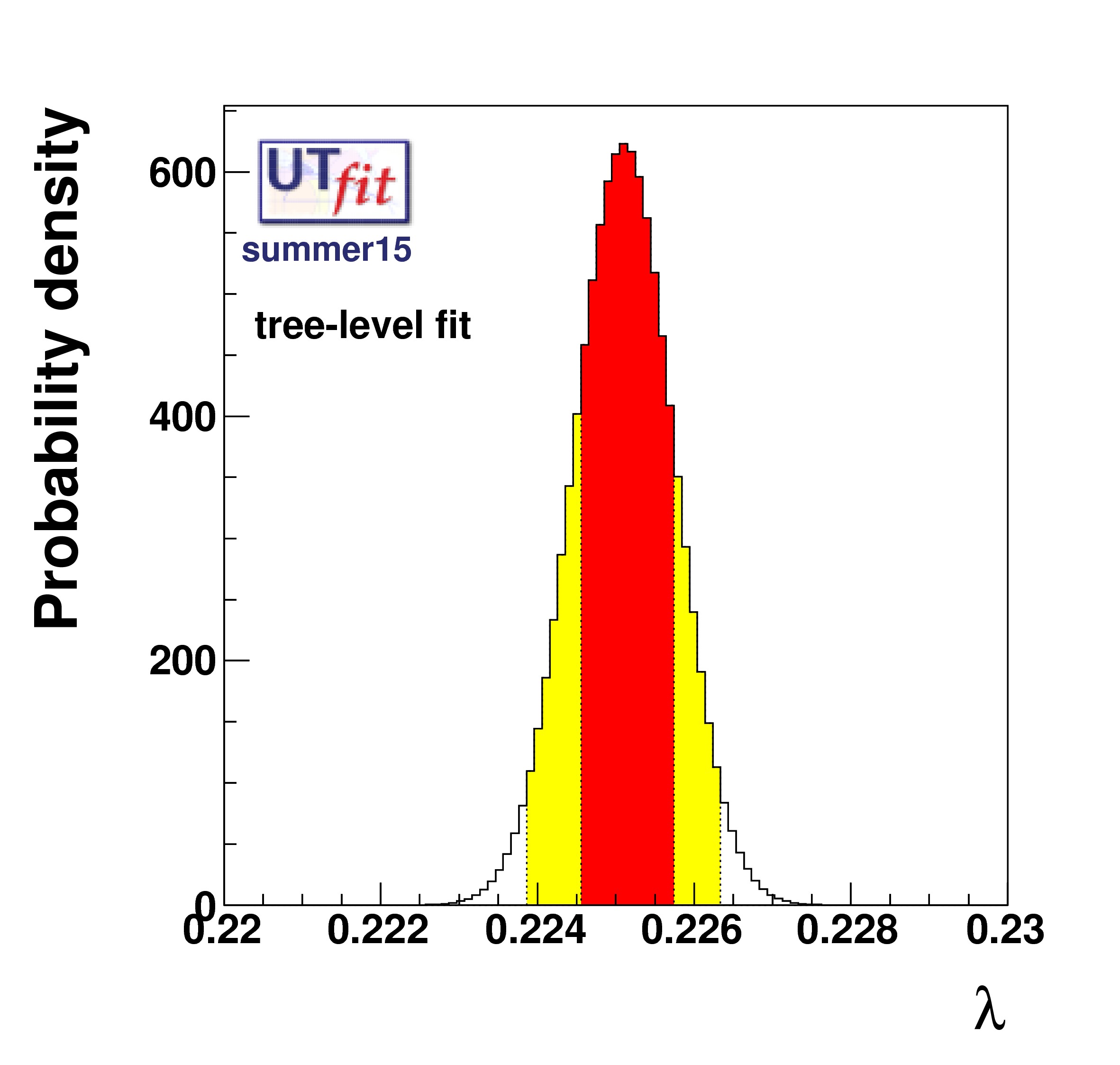

Full fit result for \,\lambda
0.22514 \pm 0.00059
95% prob:[0.22386, 0.22633]
99% prob:[0.22326, 0.22703]
EPS - PDF - PNG - JPG - GIF

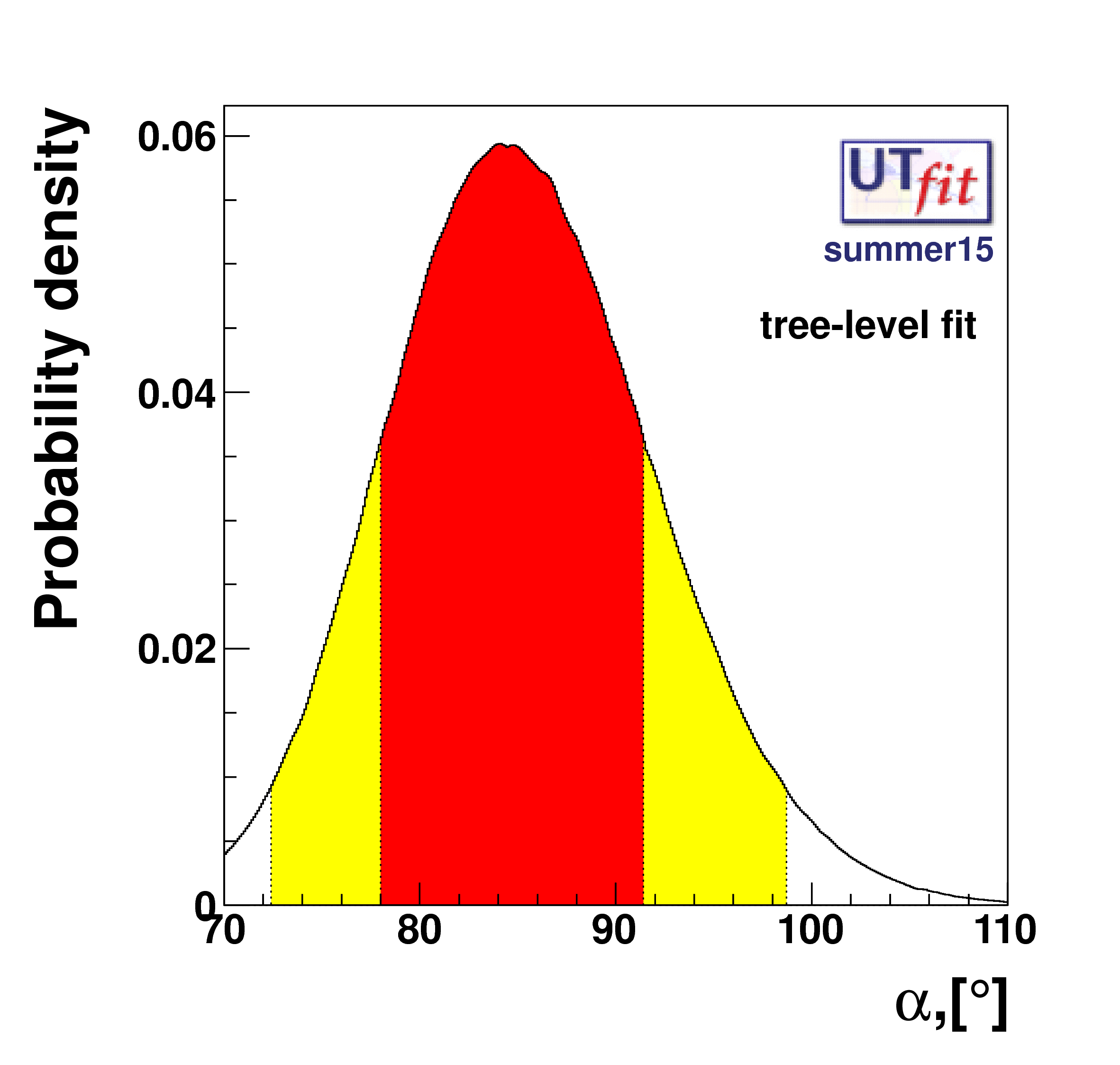

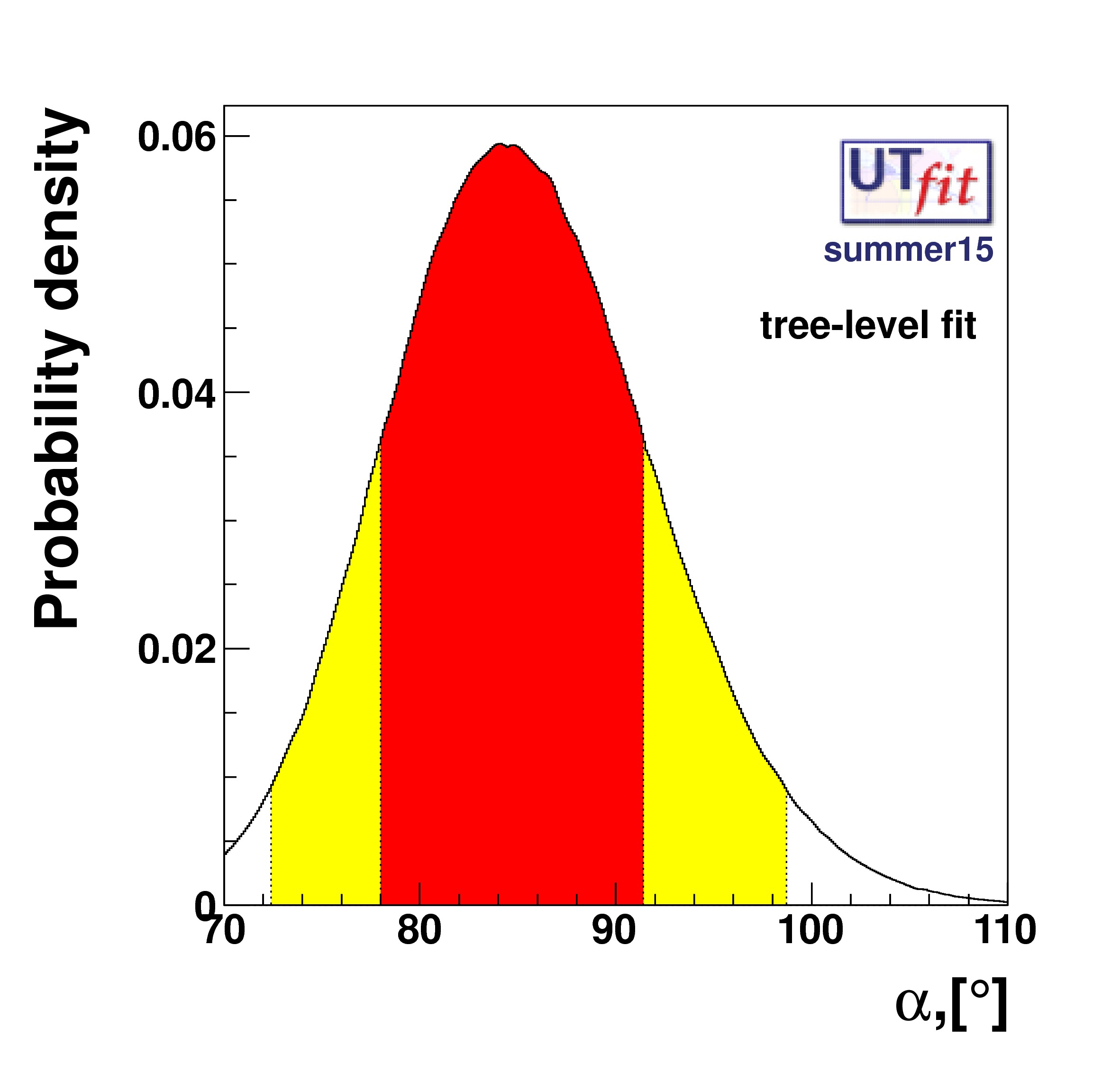

Full fit result for \,\alpha, [^{\circ}]
88.1 \pm 3.4
95% prob:[81.5, 95.2]
99% prob:[78.2, 98.7]
EPS - PDF - PNG - JPG - GIF

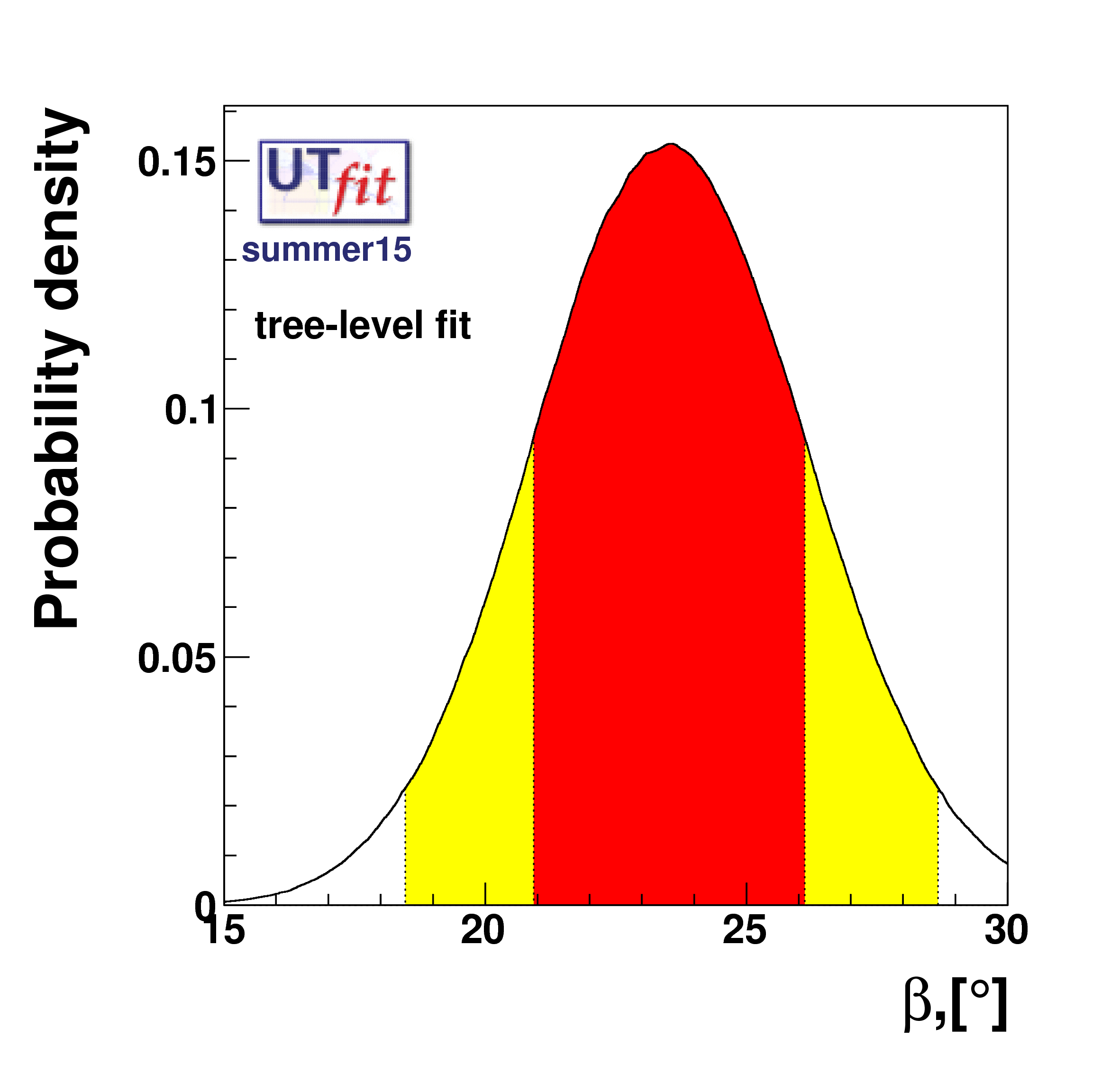

Full fit result for \,\beta, [^{\circ}]
24.2 \pm 1.6
95% prob:[20.9, 27.6]
99% prob:[19.4, 29.3]
EPS - PDF - PNG - JPG - GIF

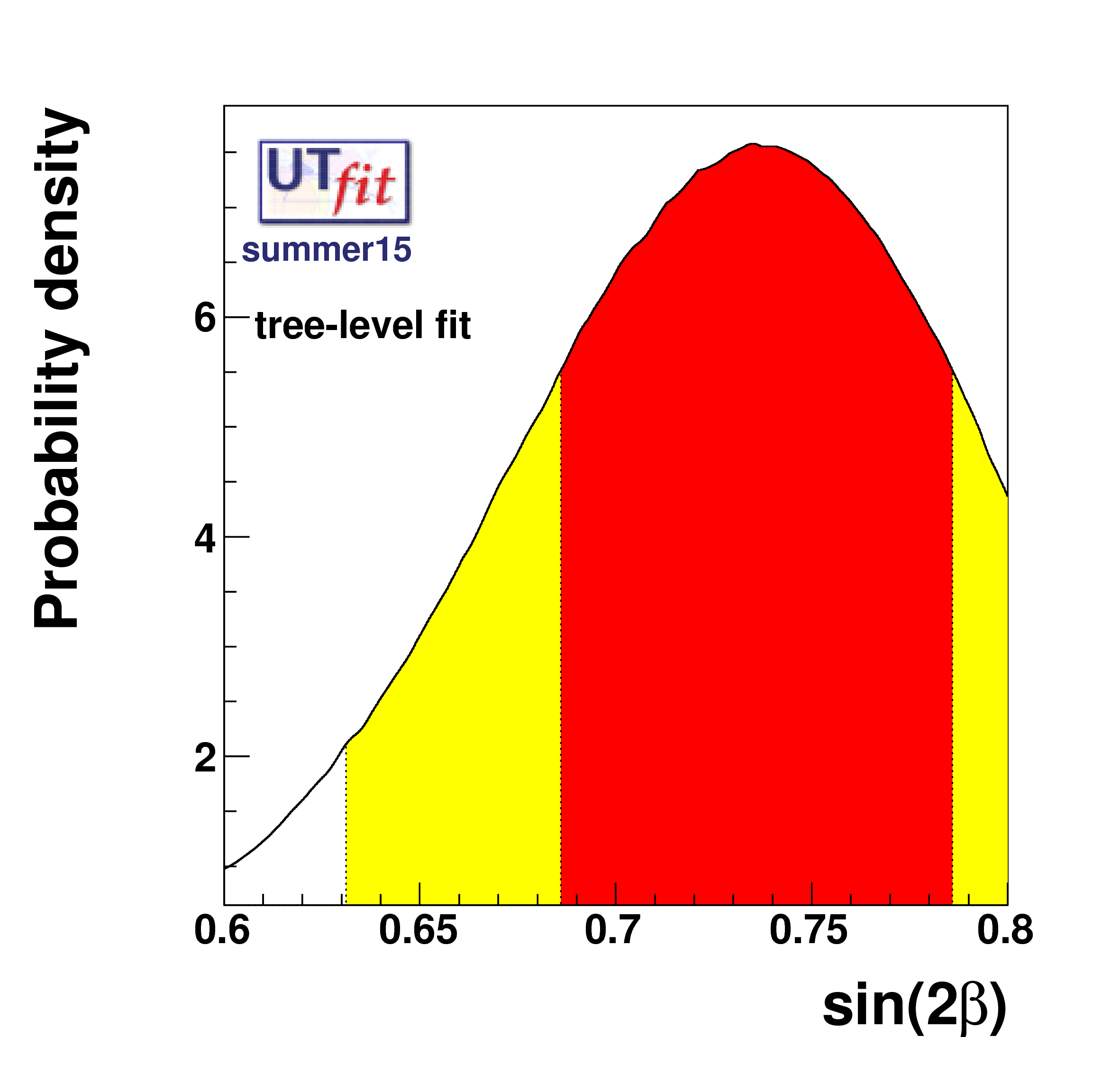

Full fit result for \,\sin(2\beta)
0.750 \pm 0.038
95% prob:[0.669, 0.822]
99% prob:[0.630, 0.858]
EPS - PDF - PNG - JPG - GIF

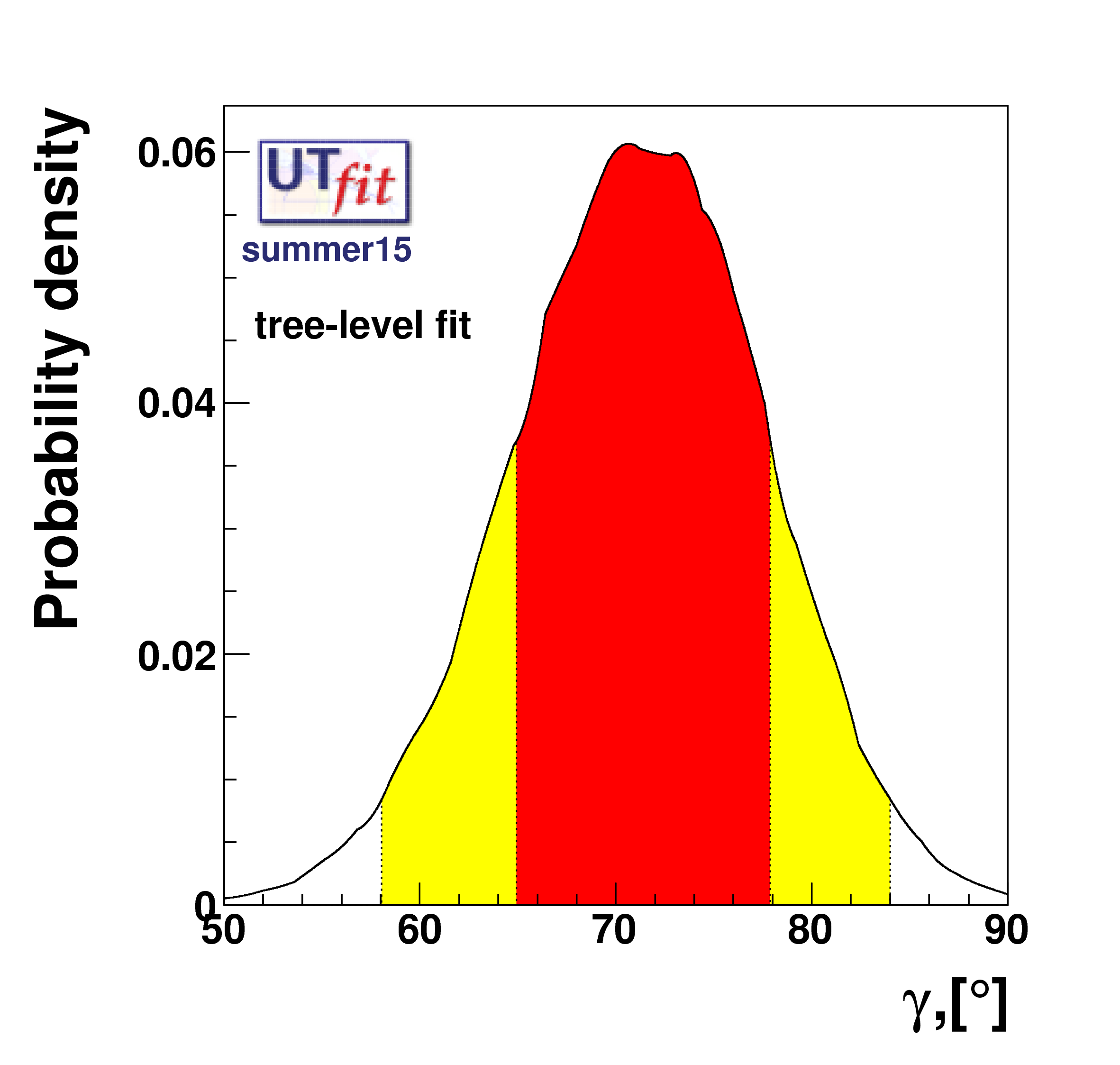

Fit Input for \,\gamma, [^{\circ}]
-108.5 \pm 6.5 \text{ and } 71.4 \pm 6.5
95% prob:[-122.0, -95.9] U [57.7, 84.0]
99% prob:[-129.3, -89.4] U [50.7, 90.7]
EPS - PDF - PNG - JPG - GIF



Prediction for \,\gamma, [^{\circ}]
66.9 \pm 3.0
95% prob:[61.0, 73.0]
99% prob:[58.0, 75.9]
EPS - PDF - PNG - JPG - GIF
